Choose Your Model
RC-300 — Standard Model
For cylindrical, tapered, and curved-profile products.
RC-300c — Clear Support Model
Adds support for printing directly onto transparent, pre-filled, and pre-labeled bottles.
Shared Specifications

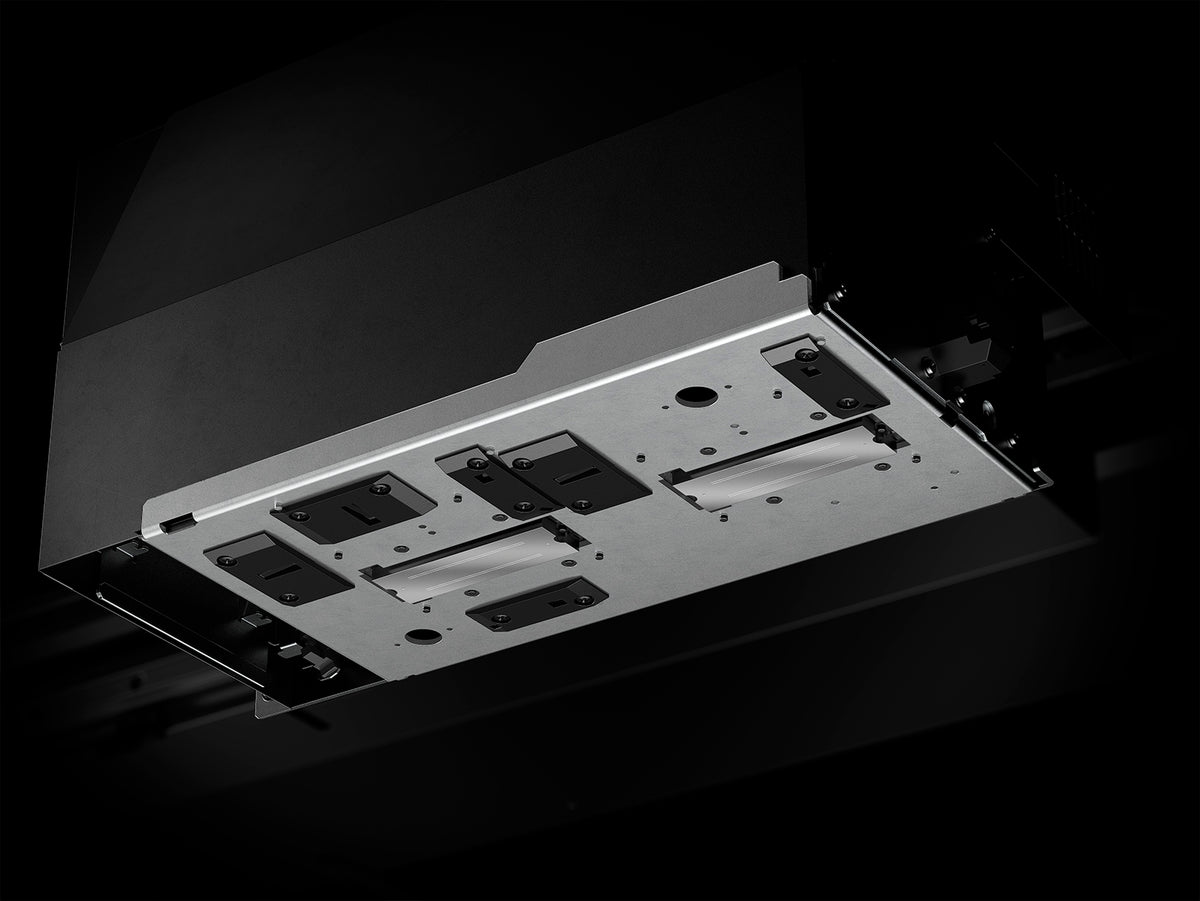

Printing Method: Piezo Ink-Jet, Helical
Maximum Object Diameter: 5 in.
Minimum Object Diameter: 1.78 in.
Maximum Object Length: 13.9 in.
Minimum Object Length: 1.19 in.
Maximum Taper: 10°
Maximum Printing Length: 11.8 in.
Maximum Object Weight: 6.6 lb.
Ink: ECO-UV (EUV-HB), 1,000 ml bottle

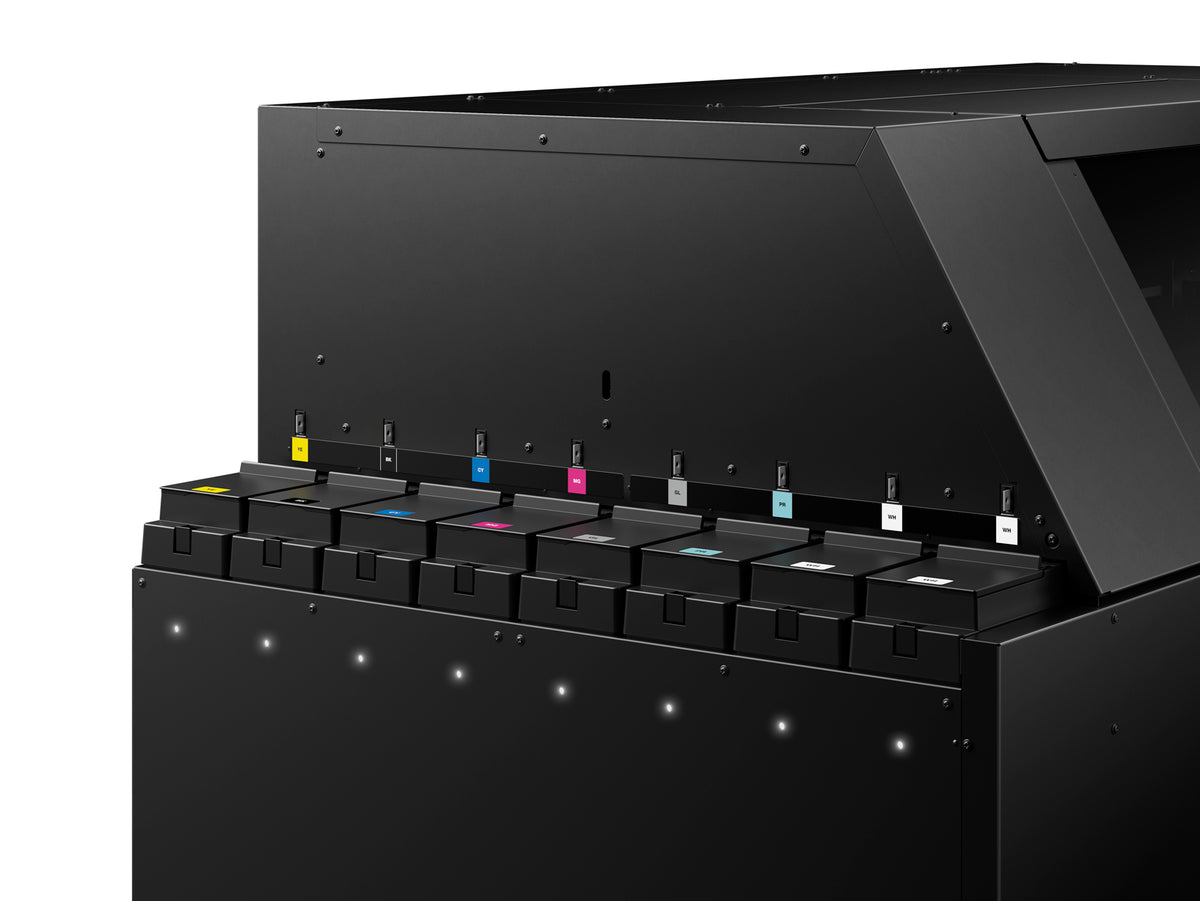

Ink Colors: Cyan, Magenta, Yellow, Black, Gloss, White × 2, Primer
Print Resolution: Up to 1,200 dpi
Curing: Built-in UV-LED
Connectivity: Ethernet
Dimensions: 63 × 33.1 × 30.9 in.
Weight: 446 lb.
Warranty: 1-Year Roland DGA Warranty
What's the Difference?
RC-300
The standard model is designed for direct UV decoration of cylindrical, tapered, and curved-profile products such as bottles, tumblers, containers, packaging, promotional products, and personalized items.
RC-300c
The Clear Support Model provides the same core printing capabilities while adding the ability to print on transparent, pre-filled, and pre-labeled bottles. This makes it particularly suited for applications such as wine and spirit bottles, premium beverages, cosmetics, and other clear packaging where the contents need to remain visible.
Product Description

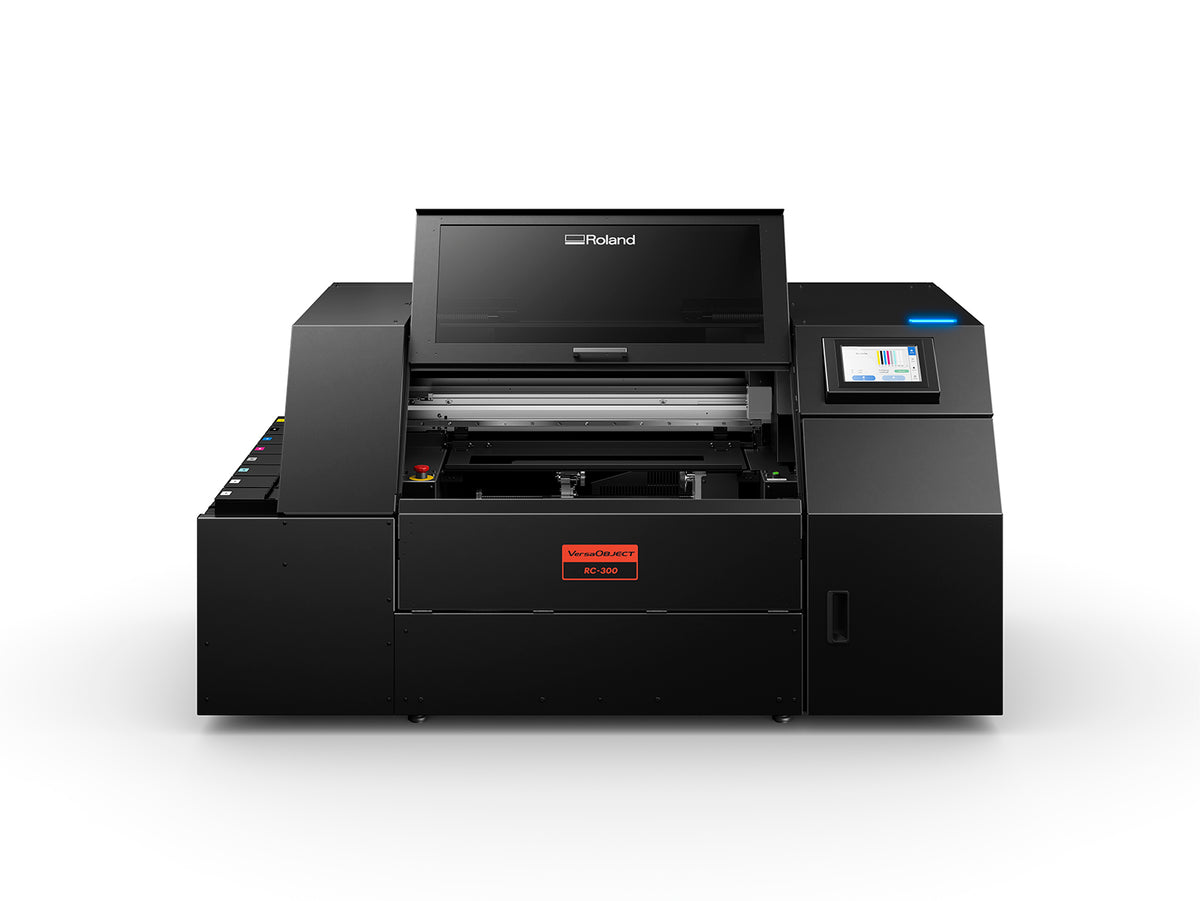

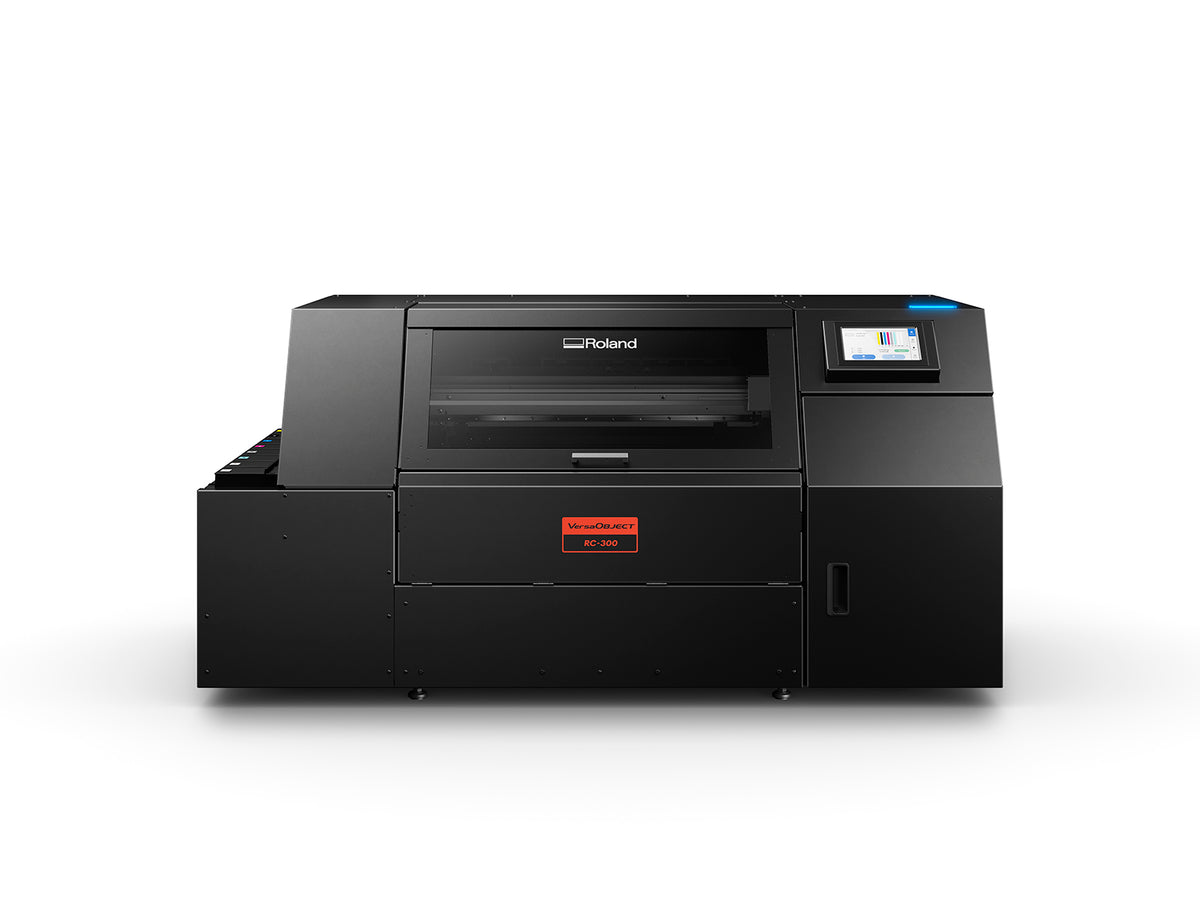

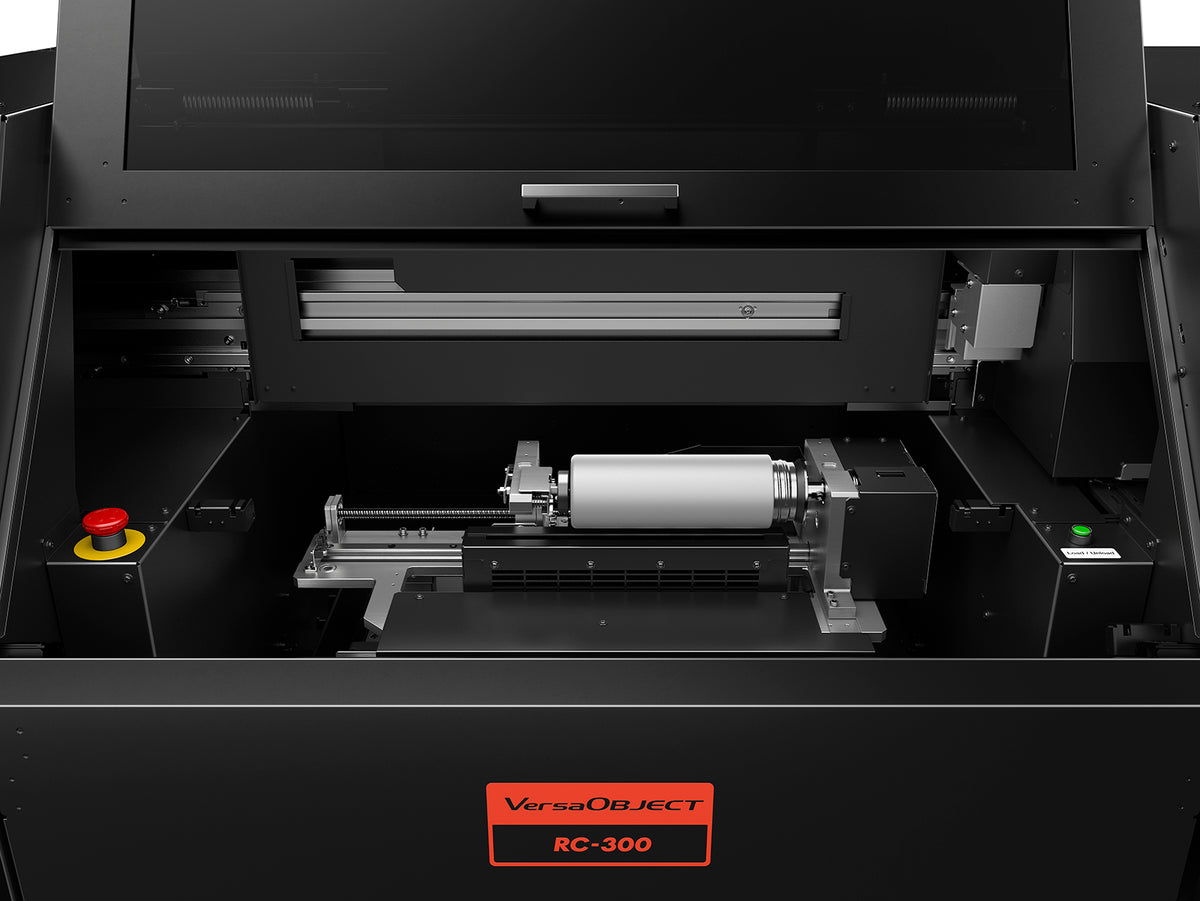

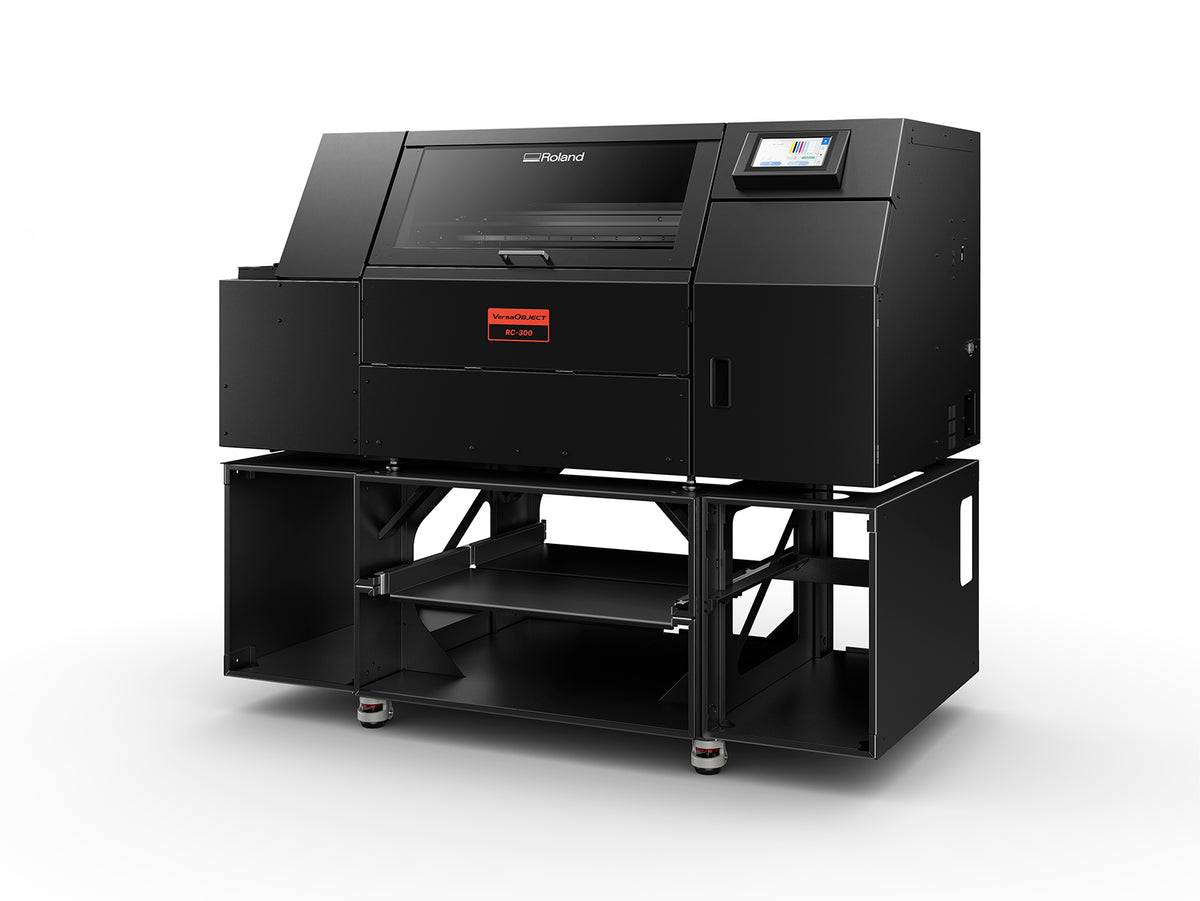

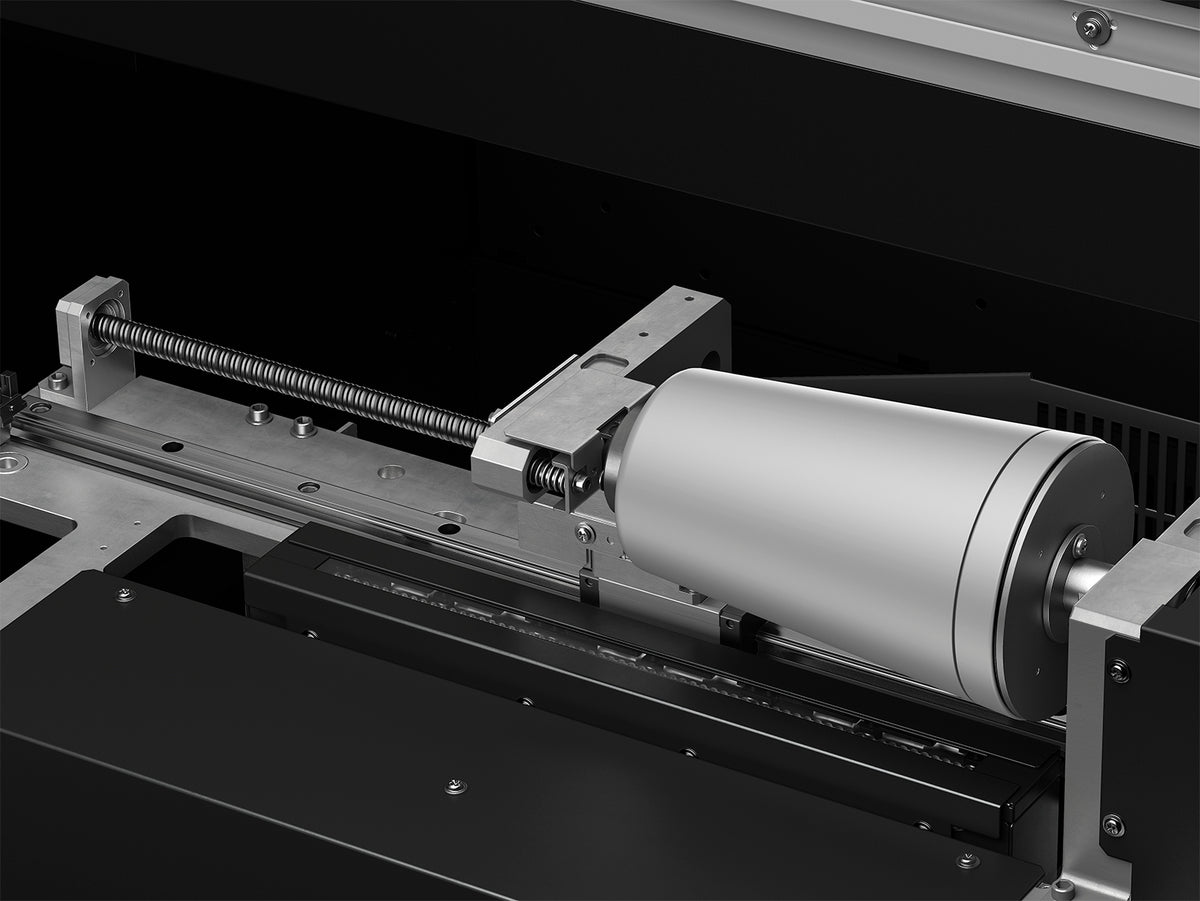

The Roland VersaOBJECT RC-300 Series UV Cylindrical Printer brings professional direct-to-object decoration to cylindrical, tapered, and curved-profile products. Using advanced helical printing technology, the RC-300 Series prints continuously around the object as it rotates, allowing businesses to create detailed 360° graphics on products that can be difficult to decorate with conventional rotary systems.
Both models support objects up to 5 inches in diameter and 13.9 inches in length, with the ability to handle tapered products with up to 10° of taper. This versatility makes the RC-300 Series suitable for bottles, drinkware, containers, cosmetics, promotional products, packaging, and personalized goods.
Using EUV-HB hard UV ink and built-in UV-LED curing, the RC-300 Series produces vibrant, durable graphics with high-opacity White and premium Gloss effects. Primer is also available to support printing on a wider range of challenging materials. These capabilities allow businesses to create colorful graphics, specialty finishes, textured effects, and premium product decoration directly onto finished objects.

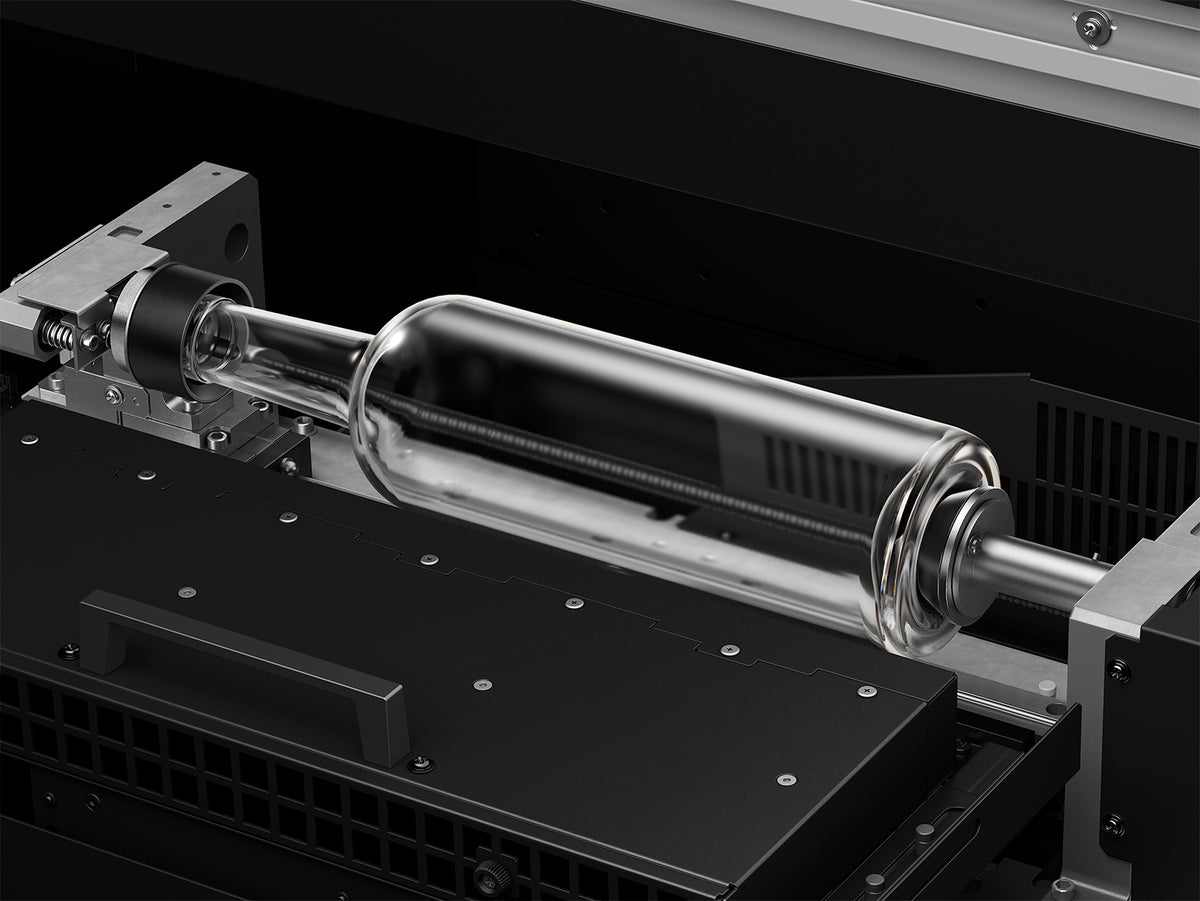

The RC-300c Clear Support Model expands the system's capabilities even further by allowing direct printing onto transparent, liquid-filled, pre-filled, and pre-labeled bottles without requiring blackout filling. This provides additional flexibility for premium beverage, wine, spirits, cosmetic, and specialty packaging applications.
From short-run bottles and limited editions to personalized drinkware, promotional products, cosmetics, and custom packaging, the VersaOBJECT RC-300 Series provides a streamlined solution for creating high-value products without traditional labels or sleeves. Combined with VersaWorks 7 and Roland DG Connect, the RC-300 Series delivers a professional workflow for direct-to-object UV printing and cylindrical product decoration.
