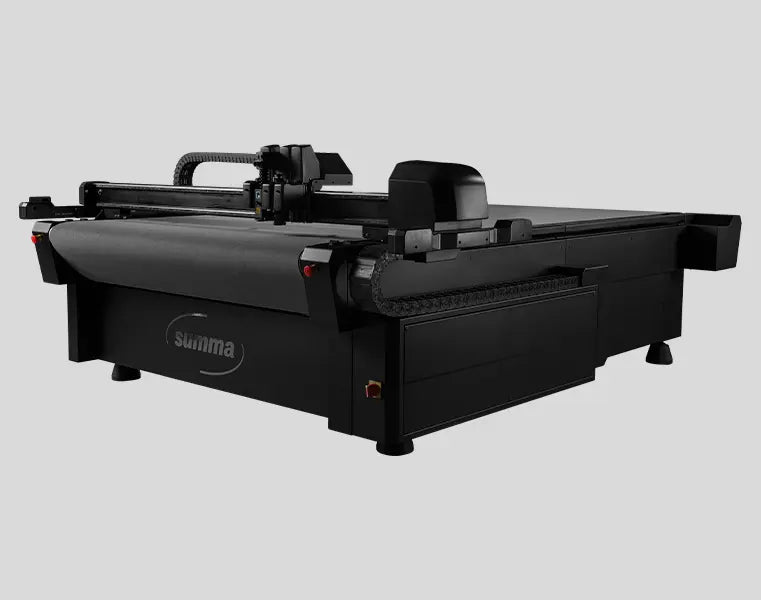

Summa F1625-51 Flatbed Cutter – 63" × 98" Digital Cutting System, 208V Three-Phase

Brochure

The Summa F1625-51 Flatbed Cutter is a versatile digital finishing system designed for professional sign shops, print providers, packaging producers, and display manufacturers. Featuring a 63" × 98" working area, a modular triple-head design, and advanced workflow automation, the F1625 processes both flexible roll media and rigid sheet materials on one platform. Its combination of precision cutting, creasing, routing capabilities, and intelligent tool management makes it an effective solution for businesses looking to expand their finishing capabilities and improve production efficiency.

Key Specifications

Working Area: 63" × 98" · Maximum Material Width: 65" · Machine Dimensions: Approximately 97" × 131" × 43" · Maximum Speed: Up to 39 in/sec · Maximum Acceleration: Up to 1G · Vacuum System: Dual vacuum pumps · Vacuum Zones: 8 · Tool Configuration: Triple-head modular system · Media Handling: Conveyor System with Pneumatic Media Clamps and Roll Support · Calibration: Automatic Device Calibration (ADC) · Software: Summa GoProduce Flatbed Edition · Power Configuration: 3 × 208V + N, 60 Hz, maximum 30A

High-Performance Digital Cutting

The F1625 is engineered for accurate, repeatable finishing across demanding production applications. Its integrated camera system supports precise registration-mark detection for print-and-cut workflows, while Automatic Device Calibration helps maintain tool accuracy. Automatic Tool Recognition and configurable tooling settings simplify job preparation, reduce manual adjustments, and support consistent output across different materials.

Versatile Processing for Flexible and Rigid Materials

Designed to handle both roll-based and sheet-based production, the F1625 supports a broad range of compatible substrates. Applications include adhesive vinyl, banners, reflective films, magnetic media, foamboard, PVC, corrugated board, synthetic sheets, and suitable composite materials. Its modular tooling platform supports different finishing techniques, including kiss-cutting, through-cutting, creasing, and routing when equipped with the appropriate tools.

Efficient Workflow and Automated Production

The F1625 integrates with Summa GoProduce Flatbed Edition software to help streamline job preparation, material settings, tool selection, and production sequencing. Barcode-driven workflows and camera-based mark detection help reduce manual intervention, while Tandem Workflow allows operators to load or unload materials in one area while cutting continues in another. These features help improve machine utilization and maintain an efficient production flow.

Large Working Area and Intelligent Media Handling

With a 63" × 98" working area, the F1625 accommodates standard 4 × 8 ft rigid boards without requiring an additional feeding system for those sheets. Its conveyor system, pneumatic media clamps, roll support, and eight-zone vacuum table help manage materials throughout the cutting process. This combination makes the system suitable for both long roll-based jobs and rigid-sheet production.

Versatile Applications for Signage and Packaging

The Summa F1625 is well suited for producing signage, point-of-purchase displays, retail graphics, custom packaging, prototypes, banners, decals, and rigid display components. Its ability to combine cutting, creasing, and routing workflows on a single platform helps businesses take on a wider variety of finishing projects and serve different market segments.

Designed for Professional Production Environments

Combining a large-format working area, modular tooling, automated calibration, and intelligent production software, the Summa F1625 offers a flexible finishing solution for growing print and packaging businesses. Its ability to process both flexible and rigid materials makes it a valuable addition to production environments seeking greater versatility, consistent quality, and streamlined digital finishing.
