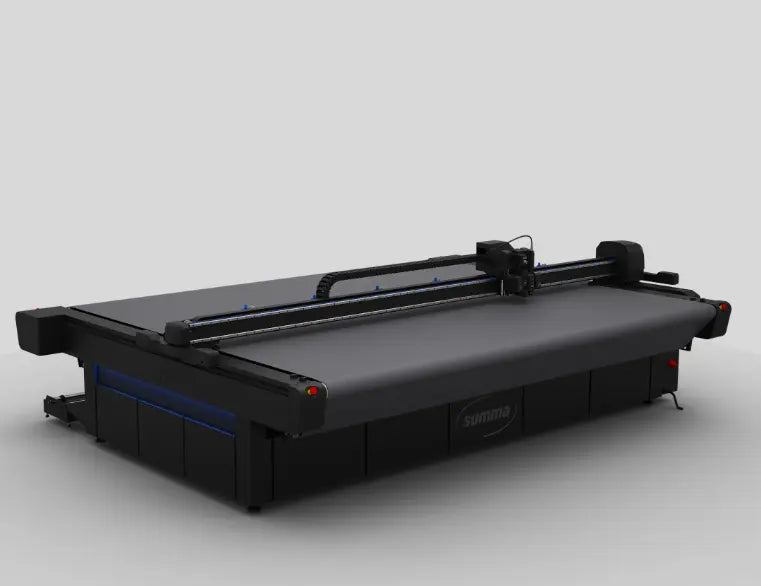

Summa F3220-51 Flatbed Cutter – 129" × 83" Wide-Format Digital Cutting System

Brochure

The Summa F3220-51 Flatbed Cutter is a high-performance digital finishing system designed for professional print providers, textile producers, sign manufacturers, and display businesses. Featuring a spacious 129" × 83" working area, a conveyor-based material handling system, and modular tooling options, the F3220 is engineered for efficient production of wide-format graphics, soft signage, and compatible rigid materials. Its precision motion control, automated calibration, and integrated workflow features help businesses maintain consistent cutting quality while processing large materials and extended production runs.

Key Specifications

Working Area: 129" × 83" · Maximum Material Width: 130.7" · Machine Dimensions: 166" × 123" × 48" · Maximum Speed: Up to 39 in/sec · Maximum Acceleration: Up to 1G · Vacuum System: 2 × 2.55 kW at 60 Hz · Vacuum Zones: 7 · Cutting System: Modular Tooling Platform · Media Handling: Conveyor System with Pneumatic Media Clamps and Roll Support · Calibration: Automatic Device Calibration (ADC) · Software: Summa GoProduce · Standard Power Options for the F3220 Family: 3 × 208V + N, 60 Hz, maximum 30A; other regional configurations are available.

Precision Cutting for Wide-Format Production

The F3220 is designed to deliver accurate, repeatable finishing across large materials and long production runs. Its integrated camera system supports registration-mark detection for print-and-cut workflows, while Automatic Device Calibration helps maintain tool accuracy. These features help minimize manual adjustments and support consistent results across large graphics and textile panels.

Versatile Material Processing

The F3220 accommodates a broad range of compatible flexible and rigid materials, including textiles, flags, mesh, banners, wide-format PVC, synthetic sheets, composite panels, corrugated board, and other suitable substrates. Its modular tooling platform supports different finishing techniques, including cutting, creasing, and routing when equipped with the appropriate tools, allowing businesses to adapt the system to different production requirements.

Efficient Media Handling and Workflow Automation

The F3220 combines conveyor-based material transport, pneumatic media clamps, roll support, and a seven-zone vacuum system to help stabilize materials during processing. Barcode-based workflows and tandem operation support efficient job changes and material handling. Summa GoProduce software helps operators prepare jobs and manage production, supporting a more streamlined finishing workflow.

Large Working Area for 3.2-Meter Production

With a 129" × 83" working area and support for materials up to 130.7" wide, the F3220 is designed to complement 3.2-meter-class wide-format printing systems. Its generous cutting surface is particularly useful for large textile panels, flags, banners, soft signage, and compatible rigid materials, helping businesses process oversized graphics efficiently.

Ideal for Textiles, Signage, and Display Graphics

The Summa F3220 is well suited for producing flags, banners, mesh graphics, soft signage, retail displays, point-of-purchase graphics, packaging components, and custom-cut display materials. Its wide-format capacity and adaptable tooling options make it a versatile finishing solution for print providers serving multiple markets.

Designed for Professional Production Environments

Combining a large working area, precision motion control, automated calibration, and intelligent material handling, the Summa F3220 provides a flexible solution for demanding digital finishing operations. Its ability to process compatible roll media and sheet materials makes it a valuable addition for businesses seeking to improve production efficiency, maintain consistent quality, and expand their finishing capabilities.
